Related Module

What are and how to show Related Downloads

As its name suggests the Related Module lists Downloads that are 'related'.  In this context the Download being shown in the current Download Details view is called the 'reference' Download.

But what does 'related' mean?   In jDownloads "Related Downloads"  are
either
 (i) those Downloads in the same category  as the reference Download and, optionally, those Downloads in its child subcategories,
or
 (ii) Downloads with the same date as the reference Download.  Note: one can select either the Creation date, the Modified date, the Published From date or the Published To date.

The related Downloads may of course be selected by a combination of category and date.

The module is designed to be shown on the Downloads Details page only.

As noted later the Related Downloads may also be sorted in several ways, including by popularity, Title, Created Date, Modified Date and so on.

An example of the Related module is shown opposite.  Note it is a Download Details view.

It may also be shown as part of the Download Description but again it is only visible when the Description is being shown on the Download Details page.

related view02
If you would like to use the Related module elsewhere then it is worthwhile looking at the Regular Labs 'Modules Anywhere' plugin.

Setting Up the Module

The principle parts to set up in the module itself are in the Module tab, the Menu Assignment tab and the Filter tab as described below.

Module tab

The most important items on the Module tab are listed below.  As described in more detail in the Download Details Layout section the Related module is displayed using the standard Joomla! loadmodule plugin.

Please also note that the selection of which Downloads are shown by a combination of category and date is setup in the Filter Tab.  The Module tab primarily determines the information about each related Download that is shown in the frontend view.

Essentials

It is essential to leave the Position field blank as shown.

This is because the position where the actual page will be displayed is not a fixed template position.

Hide the Module title  by setting the 'Show Title' option to Hide.  This is strongly recommended, particularly if you are using multiple copies of the module or you have a multilingual site as discussed later.

In the Main Options section add suitable text to the Title that is effectively a short description of the module.

Also of course set the Status to Published.
Related04A

Title Options

The 'Title above the list' option is essentially a very short description of the Related Downloads.

Obviously 'Number of Downloads' determines the maximum number of Downloads that will be listed. This is limited to a maximum of 99 Downloads

'Number of characters'   Setting a value will limit the maximum length of the Download title that will be shown to users.  Leave as zero for the full title.

When a title is truncated then field 'Characters added at end of truncated title' may be set to some text such as ... to indicate it has been truncated.  Upto 10 characters maybe used.

The 'Version prefix character?' field allows setting say a V in front of the Download version.  Upto 10 characters maybe used.

When set to Yes the 'Link to download- detail page?' field will make the titles as a link to their own respective Download Details view.

The 'View Download Description as a Tooltip?' will show any description in the Download as a hint when the mouse hovers over the title.
Related options Title

'Description Length' contols how many characters of the Description are shown.

When the 'View 'Not Found' Message' setting is set to Yes then an appropriate message, such as related view05, is shown if there are no related Downloads. If set to No then nothing is shown.

Hits Options

'Hits' are actually the number of times a Download has been downloaded.
Set the 'Show Hits?' field to Yes to show the number of hits ( times downloaded).

The 'Label for Hits Values' setting lets you choose suitable text to denote the number of times it has been  downloaded.

Setting the 'Display hits in the same line?' to No shows them on a separate line.  Setting to Yes will display them on the same line.

The 'Alignment of the hits' is only used when they are displayed on a new line.
Related options Hits

Date Options

'Show Creation date?'  turns the view on or off.

Setting the 'Display date in the same line?' to No shows the date on a separate line.  Setting to Yes will display them on the same line.

'Date format' sets the way  the date is displayed. For more information about the format see: https://www.php.net/manual/en/function.date.php.
Related options Date

The 'Date alignment' is only used when the date is displayed on a new line.

Icon Options

When set to yes the 'View assigned icon?' field shows the icon associiated with the file type.

The icon size, if being shown, is set in the 'Size of the Icon' field.

Setting 'View as a numerical list? list to Yes precedes each related Download with an integer index, for example the title line could look like related index.
Related options Date

Thumbnail Options

When 'View assigned Thumbnail?' is set to Yes and if the Download has anny associated images then a thumbnail of the first image is shown.

The 'Show the No Picture thumbnail?' field, when set to Yes, will show the no-pic image, related nopic, if the Download has no associated images.

The 'Size of the Thumbnail' field sets the size in pixels.
Related options Screenshot

Categories Options

The 'Show Categories?' setting determines if Categories are shown as part of the frontend view.  If set to No all the other settings in this section are ignored.

'Category type' has two settings: All Categories and Containing Category.  If All Categories is selected then Downloads in sub categories are also included.

The setting 'Text before category name' allows a prefix such as 'Category: '  so that the category link would look like related text before cat2.

'Category Font Color' is used when a link is not set.

'Category Font size'  obviously sets the size of the text.

Option 'View Category Title as a Link?' will if set to Yes show a link to the containing Category.
Related options Categories

Multilingual Support

The method of multilingual support for Modules in Joomla! is to have a seperate copy of the module for each language.

As shown opposite it is important that each version has an identical main Title but a different language.multilang 01
A general procedure would be to setup the module in one language and when done to use thebutton save as  button.

If theTitle of the original module was 'jDownloads Related' then the name of the copied module would be  be something like 'jDownloads Related (2)' so remove the added part of the name.

A critical part is of course to set the language option appropriately and of course to modify the various text related options to the equivalent phrase.

That is the content of options:  'Text before'; Text after'; ' Title above the list'; 'Characters added at the end of truncated title'; 'Version prefix character'; 'Lable for Hits value'; and 'Text before category name'.

The two examples shown opposite illustrate the result of a multilingual setup.

Just for demonstration purposes the names of the categories and files in my multilingual test site had '-en' or similar appended to them when they were created.

The associated items in German had '-de' or similar.

multilang 04 multilang 03

Menu Tab

The next important step is to check that the module will be shown on all pages.  This is on the module Menu Assignment tab.


This does not actually show the Module on all pages as the Related module is usually shown on the Download Details page.
related menutab
Another situation is when a Download is being shown with the Content plugin.

Also of course if one uses theRegular Labs 'Modules Anywhere' then it may be shown anywhere.

Filter Options Tab

The final stage in setting up the module is to select which of the Related Downloads are to be shown:
by date and category; by date only or by category only.

The reference date is the corresponding date in the reference Download.

First consider the setup for filtering by date and category.  Set option 'Filter on related date' to Yes.  The option 'Choose the related date' will then appear.  This pull down has 4 options to select the type of date:
related filter02
Created date
Modified date
Published From
Published To



In both cases  the selection may be extended to include subcategories, and also the 'depth' of the subcategories categories to be included.

related-filter
The 'Download Field to Order By' determines how the Downloads in the Related set are selected.
To show the most popular Downloads then use the 'Hits' setting.  Also remember to set the 'Ordering Direction' field to Descending otherwise it will show the Downloads that have been downloaded the least number of times!
The Created and Modified Date options basically allow the most recent uploads to be shown.  Essentially just experiment!

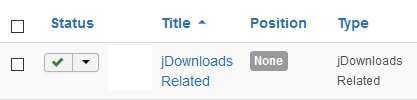

After Publishing and Close & Save, the Module Manager should look like the picture opposite.

Note that for the jDownloads Related module the 'Position' field shows a greyed 'None' entry and the 'Pages' field shows 'All'.
Related02A

jDownloads Options Setup

In the Frontend tab of the jDownloads Options Related options button  it is essential that the 'View Download detail page' option in the Download Sequence section is set to Yes.related option setup
Otherwise the Related Module will not appear because the Download Details page will not be shown!

It is also useful to set the 'Use files title as download link' option to Yes as well but this is not essential.

The other essential setting in the jDownloads Options - Frontend tab is the 'Activate support for all Joomla content plugins' option. This is in the Other Options section of the Frontend options.
This must be set to Yes as shown opposite.  This is because support for the standard Joomla! plugin is required.related content plugins

Download Details Layout

The following notes describe how to modify a Download Details layout to include the Related module.  Pease note that the layout "Standard Details Layout - Full Info (with Related Module)" already contains the necessary code.

To view the Related Module use is made of the standard Joomla! loadmodule plugin in the Download Deials layout.

Now the syntax of the loadmodule plugin may be written as [[ loadmodule module-formal-name, Title ]] where the [[ are replaced by { and ]] by }.  The Title is the name set in the module title field, which is jDownloads Featured by default. Note that Title may not be unique as there may be multiple versions of the same module.  The module-formal-name of the Related Module is mod_jdownloads_related.

So the required plugin would look like [[ loadmodule mod_jdownloads_related, jDownloads Featured]]  wth { replacing [[ and } replacing]].
An example of the code in the layout is shown below.
Related14

As mentioned earlier a standard layout called  "Standard Details Layout - Full Info (with Related)" is included in jDownloads 3.9.
If you prefer to use another Download Details layout, it will need to be edited as shown in the Appendix below.
You will, of course,  need to make the Download Details layout that supports the Related module the active layout.related layout13


An example view of the Dowload Details with Related module support is shown opposite
related view06

Including Related module in the Description

An alternative to using a Layout that supports the Related module is to include the 'loadmodule' line in the description section of the Download.

When the regular Download view occurs, such as shown opposite, the Related module does not appear!
related view03
However it does appear when any Download detail view of this particular Download is shown.

That is using the loadmodule plugin in the Description can be more selective as you may choose which Downloads are to show the Related module.


related view04

Using Multiple Related Modules

It is straightforward to create multiple copies of the Related Module, each with a different Title, as described below.

The first step is to go to Extensions - Modules and click on the standard Related module to open it up.

Click on Save As Copy and this will generate another version with a different title as shown on the far right.

Related02 2Related02 3
Change the Title to say 'jDownloadsRelatedA' and click on Save & Close.

This will show we now have another module called 'jDownloads RelatedA'.

This new module may be setup as required.
Related02 4Related02 5
To use it we just change the plugin code inserted into the layout to have the new Title 'jDownloads RelatedA',
     [[loadmodule mod_jdownloads_related,jDownloads RelatedA]] where the brackets [[ and ]] are replaced with { and } respectively.

Appendix Editing a Layout

 The next step is to edit one of the Download Details layouts. NOTE: A layout called  "Standard Details Layout - Full Info (with Related)" with the changes described below is available as standard in jDownloads 3.9.

Adding in the Related module just requires adding in one line of HTML code in the relevant Download Details Layout.

To see what is required go to   Layouts  - Detail Downloads.  Click on  "Standard Details Layout - Full Info(with Related)" which will show the main layout code.related layout07

If you wish to edit one of the other 3.9 series Download Details layouts then select the layout.
In the main toolbar first make a copy by clicking on the related layout01button located in the header.
This will make an identical copy of the selected layout except that the title  will have a " (2)" addeded to it.   Suggest that the title is changed to something appropriate.
In the Description box, which is on the right hand side, enter a description such as "download details with related module".

Now in the main layout section, search for the line which contains 'information section' as indicated opposite.  Then insert the relevant line just above <!-- Information section -->.related layout02

For convenience the relevant line is shown below so that it may be copied.
<div class="jd_related_download_details" style=""> [loadmodule mod_jdownloads_related,jDownloads Related ]</div>
Then change the [ to  { and ] to } .
Now click Save & Close and most importantly set the new Download Details layout as the Active one by using therelated activatebutton on the tool bar.

Colin M December 2019, modified August 2020, minor corrections Nov 2021
